Non- loop coil Metal Sensor (model : SG-5)

[ Descriptions ]

  • It can detect approaching vehicles and activate warning lights or control garage doors.

  • Since it can detect the front and back of the metal sensor, you need to check the proper installation location.

  • The metal sensor can detect if a person approaching at close range is carrying a weapon such as a gun or a bayonet.

  • When metal is detected, the output that can control the alarm light and the Open-collector output that can send a signal to another control device are activated.

  • The alarm light that is activated when metal is detected can have its operating time controlled by the internal timer.

[ Specifications ]

  • Sensor type               : Magnetic sensor

  • Detection distance  : Within 5 meters

  • Detection direction : Front and rear of the sensor

  • Detection target       : Vehicles, forklifts, carts, metals, weapons (possible at close range)

  • Output : open collector(2 sec.), AC/DC12V  ~ 600V control(20seconds)

  • Timer   : 0 ~ 20sec.

  • Power supply           : DC 12V

  • Components             : 1 sensor, 1 AUX board

  • Unit price                  : US$ 157.00

  • Bulk order  : 50, 100, 200pcs (discount will be applied)

  • Sensor Cable : 10m -> US$ 21.00,  Add $10 extra for every 10 meters

  • Adapter          :  US$ 10.00

금속센서 SG-5

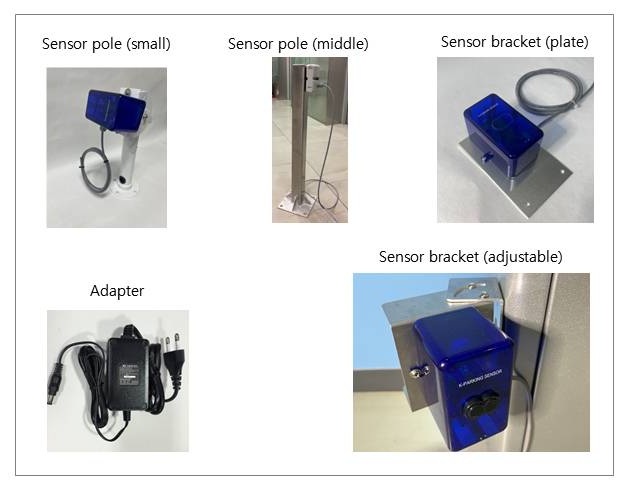

[ Accessories ]

  • Adapter: DC12V power supply for sensor

  • Unit price: US$ 10.00

  • Sensor pole (small): Aluminum material and angle adjustable (height: 250mm).

  • Unit price:  US$ 120.00

  • Sensor pole (Midum): assembled sensor using a bracket (height: 634mm).

  • Unit price: US$ 140.00

  • Aluminum Bracket : 90 x 150 x 3mm

  • Unit price : US$ 13.00

부속품

[ Signal Component ]

  • 2 color- Traffic light (wall, ceiling) : Red, Green 125mm Lamp

  • Unit Price    : US$ 270.00

  • 2 color Traffic light (stand) : Red, Green 125mm Lamp & Warning

  • Unit Price   :  US$ 340.00

  • Warning light (ceiling)  : 125mm lamp

  • Unit Price   : US$ 85.00

  • Warning light (wall)      : 125mm lamp & Bracket

  • Unit Price   : US$ 157.00

  • Warning light ( stand)   : 125mm lamp & warning letter display

  • Unit Price   : US$ 250.00

  • Siren Speaker (wall)        : 20W siren

  • Unit Price    : US$ 107.00
